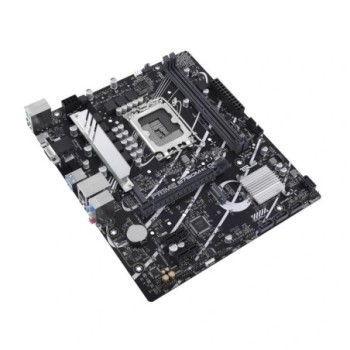

La Placa Base Asus Prime B760M-K D4 Disenada Para Procesadores Hibridos Intel Core De 12A Y 13A Generacion Es Ideal Para Montar Un Sistema Potente Y Versatil. Las Placas Base Asus Prime Estan Disenadas Y Fabricadas Para Usuarios Exigentes Que Buscan Un Rendimiento Constante Y Fiabilidad A Largo Plazo. Aprovechan Al Maximo Sus Componentes Con Un Diseno Unico Hecho De Materiales Robustos Y Utilidades Exclusivas. Incorporan Funciones Profesionales Y Combinan Las Ventajas De Los Nuevos Procesadores Intel Con El Diseno Y Las Caracteristicas Iconicas De Asus.

Caracteristicas:

-Compatibilidad Con Los Procesadores Intel Core De 12A Y 13A Generacion En El Zocalo Lga 1700
-Compatible Con Memoria Ddr4, Hasta 5333 Mhz (Oc)
-2 X 4 Ranuras M.2 Pcie 4.0 + 4 Puertos Sata 6 Gbps
-Ranura Pci-Express 4.0 16X
-Asus 5X Protection Iii Con Digi+ Vrm, Languard, Proteccion Contra Sobretensiones
-Lan De 2,5 Gbe
-Sincronizacion Aura Y Compatibilidad Con Ventilador Argb
-Formato Micro Atx

Especificaciones
Cpu
-Intel Socket Lga1700 For 13Th Gen Intel Core Processors & 12Th Gen Intel Core, Pentium Gold And Celeron Processors
-Supports Intel Turbo Boost Technology 2.0 And Intel Turbo Boost Max Technology 3.0
Refer To Www.asus.com For Cpu Support List.
Intel Turbo Boost Max Technology 3.0 Support Depends On The Cpu Types.
Chipset
-Intel B760 Chipset
Memory
-2 X Dimm, Max. 64Gb, Ddr4
-5333(Oc)/5066(Oc)/5000(Oc)/4800(Oc)/4600(Oc)/4400(Oc)/4266(Oc)/4000(Oc)/3733(Oc)/3600(Oc)/3466(Oc)/3400(Oc)/3333(Oc)/3200/3000/2933/2800/2666/2400/2133 Non-Ecc, Un-Buffered Memory
-Dual Channel Memory Architecture
-Supports Intel Extreme Memory Profile (Xmp)
Supported Memory Types, Data Rate(Speed), And Number Of Dram Modules Vary Depending On The Cpu And Memory Configuration, For More Information Refer To Www.asus.com For Memory Support List.
Graphics
-1 X Vga Port
-1 X Hdmi Port
Graphics Specifications May Vary Between Cpu Types. Please Refer To Www.intel.com For Any Updates.
Supports 4K@60Hz As Specified In Hdmi 2.1.
Expansion Slots
-Intel 13Th & 12Th Gen Processors
-1 X Pcie 4.0 X16 Slot
-Intel B760 Chipset
-2 X Pcie 4.0 X1 Slots
Note: To Ensure Compatibility Of The Device Installed, Please Refer To Https://Www.asus.com/Support/ For The List Of Supported Peripherals.
Storage
-Total Supports 2 X M.2 Slots And 4 X Sata 6Gb/S Ports
-Intel 13Th & 12Th Gen Processors
-M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports Pcie 4.0 X4 Mode)
-Intel B760 Chipset
-M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports Pcie 4.0 X4 Mode)
-4 X Sata 6Gb/S Ports
Intel Rapid Storage Technology Supports Sata Raid 0/1/5/10.
Ethernet
1 X Realtek 2.5Gb Ethernet
Usb
-Rear Usb (Total 6 Ports)
-4 X Usb 3.2 Gen 1 Ports (4 X Type-A)
-2 X Usb 2.0 Ports (2 X Type-A?
-Front Usb (Total 5 Ports)
-1 X Usb 3.2 Gen 1 Header Supports 2 Additional Usb 3.2 Gen 1 Ports
-2 X Usb 2.0 Headers Support 3 Additional Usb 2.0 Ports
Audio
Realtek 7.1 Surround Sound High Definition Audio Codec
- Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking
- Supports Up To 24-Bit/192 Khz Playback
Audio Features
- Audio Shielding
- Premium Audio Capacitors
- Dedicated Audio Pcb Layers
A Chassis With An Hd Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.
Back Panel I/O Ports
-4 X Usb 3.2 Gen 1 Ports (4 X Type-A)
-2 X Usb 2.0 Ports (2 X Type-A)
-1 X Vga Port
-1 X Hdmi Port
-1 X Realtek 2.5Gb Ethernet Port
-3 X Audio Jacks
-1 X Ps/2 Keyboard/Mouse Combo Port
Internal I/O Connectors
-Fan And Cooling Related
-1 X 4-Pin Cpu Fan Header
-1 X 4-Pin Chassis Fan Header
-Power Related
-1 X 24-Pin Main Power Connector
-1 X 8-Pin +12V Power Connector
-Storage Related
-2 X M.2 Slots (Key M)
-4 X Sata 6Gb/S Ports
-Usb
-1 X Usb 3.2 Gen 1 Header Supports 2 Additional Usb 3.2 Gen 1 Ports
-2 X Usb 2.0 Headers Support 3 Additional Usb 2.0 Ports
-Miscellaneous
-2 X Addressable Gen 2 Headers
-1 X Aura Rgb Header
-1 X Clear Cmos Header
-1 X Com Port Header
-1 X Front Panel Audio Header (Aafp)
-1 X S/Pdif Out Header
-1 X Speaker Header
-1 X Spi Tpm Header (14-1Pin)
-1 X 10-1 Pin System Panel Header
Special Features
-Asus 5X Protection Iii
- Digi+ Vrm
- Languard
- Overvoltage Protection
- Safeslot Core
- Stainless-Steel Back I/O
Asus Q-Design
- Q-Dimm
- Q-Led Core
- Q-Slot
Asus Ez Diy
- Procool
Asus Thermal Solution
- Vrm Heatsink Design
Aura Sync
- Aura Rgb Header
- Addressable Gen 2 Headers
Software Features
Asus Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert
- Power Saving
-Ai Suite 3
- Digi+ Vrm
- Pc Cleaner
-Asus Cpu-Z
-Norton 360 Deluxe (60 Days Free Trial)
-Winrar
-Uefi Bios
-Asus Ez Diy
-Asus Crashfree Bios 3
-Asus Ez Flash 3
-Asus Uefi Bios Ez Mode
Bios
-128 Mb Flash Rom, Uefi Ami Bios
Manageability
-Wol By Pme, Pxe
Accessories
Cables
-2 X Sata 6Gb/S Cables
Miscellaneous
-1 X I/O Shield
-2 X M.2 Anchors
Documentation
-1 X User Guide
Operating System
-Windows 11, Windows 10 64-Bit
Form Factor
-Matx Form Factor
-9.6 Inch X 8.3 Inch (24.4Cm X 21.1Cm)
