ean: 4718017755528 | p/n: 90mb14i0-m0eay0 | marca: asus
Métodos de pagos seguros
Política de seguridad
Política de entrega
Política de devolución
| Marca | Asus |

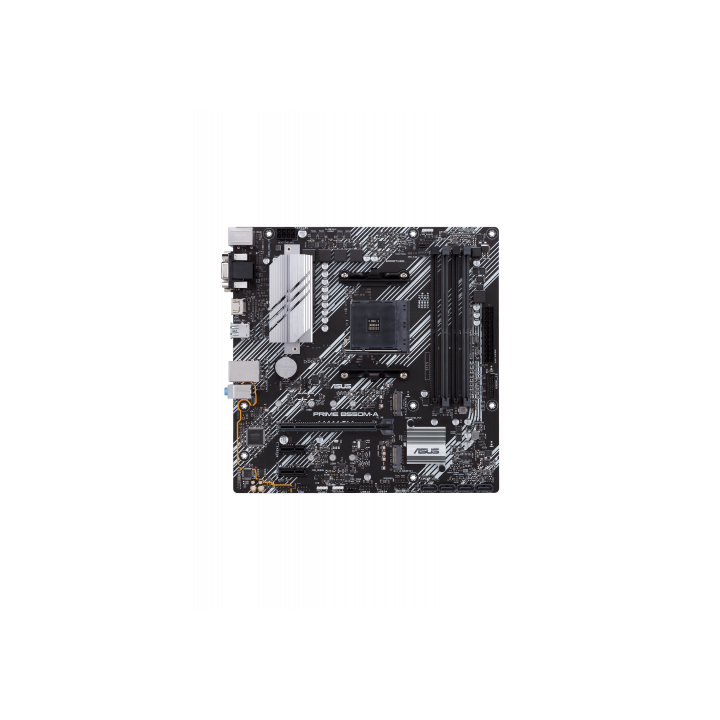

| Modelo | Prime B550M-A (90Mb14I0-M0Eay0) |
| Plataforma | - M-Atx (24.4 Cm X 24.4 Cm) |
| Chipset | - Amd&Reg; B550 Chipset |
Cpu Soportados | - Admite Amd Ryzen&Trade; 3&Ordf; Generacion Y Amd Ryzen&Trade; 3&Ordf; Generacion Con Procesador De Graficos Radeon&Trade; Con Socket Amd Am4 |
| Memoria | - 3&Ordf; Gen Amd Ryzen&Trade; 4 X Dimm, Max. 128Gb, Ddr4 4600(O.c)/4400(O.c)/4266(O.c.)/4133(O.c.)/4000(O.c.)/3866(O.c.)/3733(O.c.)/3600(O.c.)/3466(O.c.)/3333(O.c.)/3200/3000/2800/2666/2400/2133 Mhz Un-Buffered Memory - 3&Ordf; Gen Amd Ryzen&Trade; Con Graficos Radeon&Trade; 4 X Dimm, Max. 128Gb, Ddr4 4800(O.c.)/4600(O.c)/4466(O.c.)/4400(O.c)/4266(O.c.)/4133(O.c.)/4000(O.c.)/3866(O.c.)/3733(O.c.)/3600(O.c.)/3466(O.c.)/3333(O.c.)/3200/3000/2800/2666/2400/2133 Mhz Un-Buffered Memory - Dual Channel Memory Architecture - Ecc Memory (Ecc Mode) |
Slots Expansion | 3Rd Gen Amd Ryzen&Trade; Processors - 1 X Pcie 4.0 X16 (X16 Mode) Amd B550 Chipset - 1 X Pcie 3.0 X16 (X4 Mode) - 1 X Pcie 3.0 X1 |
| Graficos | - 1 X D-Sub - 1 X Dvi-D - 1 X Hdmi 2.1(4K@60Hz) |
Puertos E/S, Conectores | Internos - 2 X Conector(Es) Usb 2.0 Soporta(N) 4 Usb 2.0 Extra - 1 X Zocalo M.2 3 With M Key, Type 2242/2260/2280/22110 Storage Devices Support(Sata &Amp; Pcie 4.0 X4 Mode) - 2 X Conector Aura Para Tiras Rgb - 4 X Conector(Es) Sata 6Gb/S - 1 X Conector(Es) Ventilador De Cpu - 2 X Conector(Es) Ventilador Chasis - 1 X Conector Ventilador Cpu Opt - 1 X Cabezal De Salida S/Pdif - 1 X Conector De Alimentacion Eatx De 24 Contactos - 1 X Conector De Audio En Panel Frontal (Aafp) - 1 X Addressable Gen 2 Header(S) - 1 X Usb 3.2 Gen 1(Up To 5Gbps) Connector(S) Support(S) Additional 2 Usb 3.2 Gen 1 Port(S) - 1 X Jumper Clear Cmos - 1 X M.2 Socket 3 Con M Key, Compatible Con Dispositivos De Almacenamiento Tipo 2242/2260/2280 (Modo Sata &Amp; Pcie 3.0 X 4) - 1 X Spi Tpm Header - 1 X 8-Pin Eatx 12V Power Connectors - 1 X Conector De Panel De Sistema - 1 X Conector Puerto Com - 1 X Conector Altavoz Externos - 1 X Ps/2 Keyboard/Mouse Combo- 1 X Dvi-D - 1 X D-Sub - 1 X Hdmi - 1 X Lan (Rj45) - 2 X Usb 3.2 Gen 2 (Teal Blue) (2 X Type-A) - 4 X Usb 3.2 Gen 1 (Blue) Type-A - 3 X Audio Jack(S) |
Otras Caracteristicas | Almacenamiento Audio- 2 X M.2 - 4 X Sata 6Gb/S - Soporta Raid 0, 1, 10 Usb - 2 X Usb 3.2 Gen 2 (2 X Type-A) - 4 X Usb 3.2 Gen 1 (4 X Type-A) - 2 X Usb 3.2 Gen 1 (2 X Type-A) - 4 X Usb 2.0 (4 X Type-A) Red - Realtek Rtl8111H 1Gb Ethernet - Realtek Alc887 7.1 Surround Sound High Definition Audio Codec |
| Fecha Revision | 14-09-2020 Por Msb |
